SORTING EQUIPMENT

DBSBallistic Separator

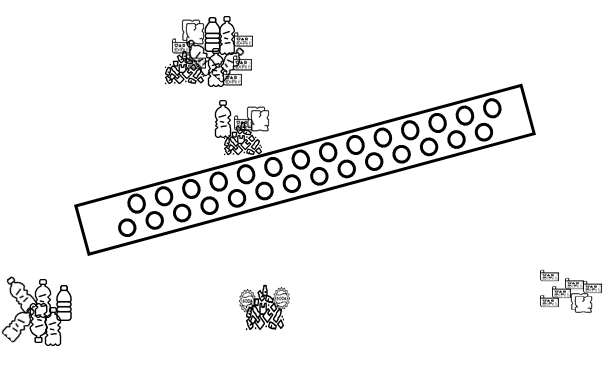

Ballistic separators are essential equipment in modern recycling plants, designed to sort mixed waste by taking advantage of differences in material behavior. The machine features an inclined deck that vibrates at a calibrated frequency. Flat and lightweight materials (such as paper, cardboard, and plastic film) migrate toward the top section, bulky rigid materials (plastics, cans, bottles) move downward, and small particles fall through the screen openings. This three-way separation increases purity rates, ensures consistent feeding for downstream equipment, and boosts total system efficiency.

UNITDT2000x6DBS3000DBS3500DBS5000
POWERkW7,5111115
PADDLE LENGTHmm5000500050005000
PADDLE LENGTHmm2000300035005000
SCREEN SIZEm2101517,525
ADJUSTABLE ANGLE°11 – 22°11 – 22°11 – 22°11 – 22°
SCREEN SIZEmmØ20 – 100Ø20 – 100Ø20 – 100Ø20 – 100
CAPACITYm3/h6090105150
MACHINE WEIGHTton5,57810

Fan Option

Adjustable Angle

Adjustable Screen Size

Anti-Twisting Design
