SORTING EQUIPMENT

DYE – Star Screen

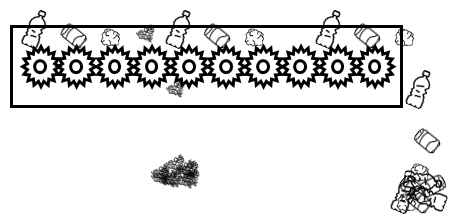

In waste processing facilities, star screens utilize synchronized, star-profiled discs mounted on parallel shafts to classify materials by particle size. The aggressive tumbling action prevents clogging, loosens compacted waste, and ensures precise separation between fine, medium, and coarse fractions.

UNITDYE1400x14DYE1400x21DYE1400x28DYE2000x14DYE2000x21DYE2000x28DYE2800x14DYE2800x21DYE2800x2
POWERkW5,57,5115,57,5115,57,511
LENGTHmm290043005800290043005800290043005800
WIDTHmm140014001400200020002000280028002800
Number
of Shafts		142128142128142128
Rotation
Speed		d/dk rpm101101101101101101101101101
Screen
Size		mm10 – 3010 – 3010 – 3010 – 3010 – 3010 – 3010 – 3010 – 3010 – 30
Capacityton/h3,5 @100
kg/m3		4,5 @100
kg/m3		5,5 @100
kg/m3		5,5 @100
kg/m3		6 @100
kg/m3		7,5 @100
kg/m3		7 @100
kg/m3		9 @100
kg/m3		11 @100
kg/m3
Machine
Weight		ton1,82,63,42,23,34,42,84,25,6

Adjustable Speed ​​Possibility

Low Space Requirement

Easy Control Possibility

Easy Lubrication Possibility
