SORTING EQUIPMENT

DPEFinger Screen

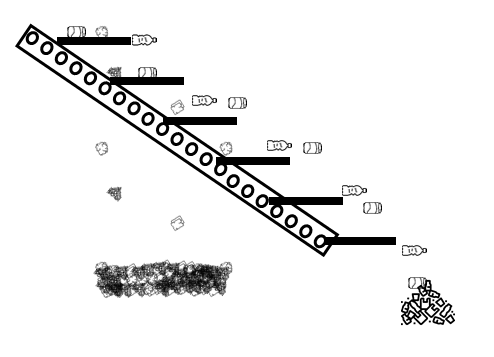

Using oscillating finger-like bars arranged in staggered rows, the machine efficiently classifies materials based on particle size. The vibration prevents clogging and ensures smooth material flow, enabling fine materials to fall through the screening gaps and larger debris to be transported to downstream equipment.

UNITDPE1200DPE1600DPE2000DPE2400
POWERkW7,5152230
LENGTHmm3500500060006000
WIDTHmm1200160020002400
SCREENING AREAm24,281214,4
SCREEN SIZEmmØ10 – 150Ø10 – 150Ø10 – 150Ø10 – 150
CAPACITYm3/h13,5 @500 kg/m318 @500 kg/m326 @500 kg/m330 @500 kg/m3

Adjustable Screen Size

Low Space Requirement

Anti-Twisting Design

Easy Lubrication Possibility
