DT – Trommel Separator

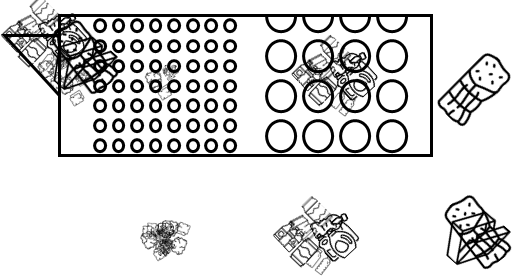

A Trommel Separator is a rotating cylindrical screen used in waste processing facilities to classify materials based on particle size. As the drum rotates, smaller fractions pass through the perforated openings while larger items move toward the discharge end, enabling efficient size-based separation and preparing materials for subsequent sorting stages.

	UNIT	DT2000x6	DT2000x8	DT2500x8	DT2500x10	DT2500x12	DT3000x10	DT3000x12	DT3000x14
POWER	kW	22	22	22	22	37	37	37	37
DRUM LENGTH	mm	6000	8000	10000	10000	12000	10000	12000	14000
ROTATION SCREEN DIAMETER	mm	Ø2000	Ø2000	Ø2500	Ø2500	Ø2500	Ø3000	Ø3000	Ø3000
SCREEN SIZE	mm	Ø20 – 350	Ø20 – 350	Ø20 – 350	Ø20 – 350	Ø20 – 350	Ø20 – 350	Ø20 – 350	Ø20 – 350
MACHINE ANGLE	°	4°	4°	4°	4°	4°	4°	4°	4°
CAPACITY	Ton/h	10 – 15	13 – 18	15 – 20	20 – 30	30 – 45	25 – 40	35 – 50	40 – 60
ROTATION SPEED	d/dk – rpm	0 – 14	0 – 14	0 – 14	0 – 14	0 – 14	0 – 14	0 – 14	0 – 14
RECOMMENDED SPEED	d/dk – rpm	12- 14	12- 14	12- 14	12- 14	12- 14	12- 14	12- 14	12- 14

Adjustable Screen Size

Hydraulic Lifting

Anti-Twisting Design

High Sorting Efficiency
